Antennes 4G / LTE / WIFI / MIMO

Référence Antenne Application Dimensions Connecteur Document PDF
NETZ 5 IN 1 GNSS : 1561 / 1575.42 / 1602 MHz
LNA : 1561 / 1575.42 / 1602 MHz
LTE MIMO1 : 698~960 / 1710~2170 / 2300~2690 MHz
LTE MIMO2 : 698~960 / 1710~2170 / 2300~2690 MHz
WIFI MIMO1 : 2400~2500 / 5150~5850 MHz
WIFI MIMO2 : 2400~2500 / 5150~5850 MHz
66.5 x ⌀141.98 mmSMA / FAKRA (personnalisation possible)
NETZ 4 IN 1 Cellular/LTE (698~960, 1710~2170, 2500~2700 MHz)
2.4/5.0 GHz WIFI (2410~2490, 4920~5925 MHz)
96 x 96 x 94 mmSMA / FAKRA
(personnalisation possible)
MEA-698-2700-AM 4G/LTE : 698-2700 MHz101.5 x 77.6 x 15.8 mmSMA male (ou autres)
MEA-698-3800-SM 2G/3G/4G/5G : 698-3800 MHz59 x 71 mmSMA

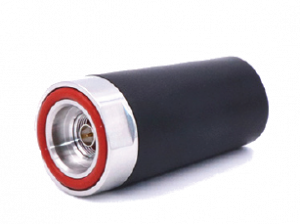

MEA-SW-700-3800 2G/3G/4G/ISM/Wi-Fi & GNSS : 698-960 - 3800 MHzΦ 41 x 84 mmN Male
MEA-868-SM 865-868MHzΦ 48 x 82 mmSMA Male

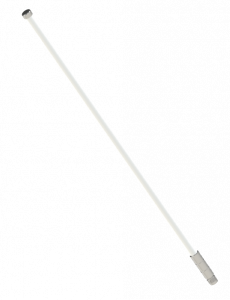

MEA-868-915-M 868-915 MhzΦ 23 x 795mmN Male
MEA-868-915-SMA 868-915 MhzΦ 48 x 82 mmSMA Male

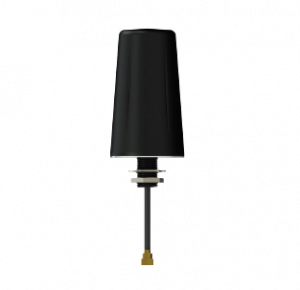

MEA-915-SM 902-928MHzΦ 48 x 82 mmSMA Male

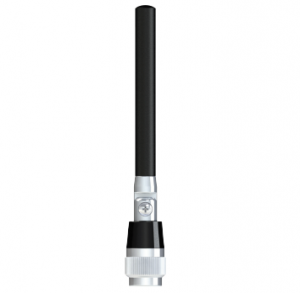

MEA-960-LTE LTE : 698-960 / 1710-2700 MHz82 x ⌀4 mm (min)
82 x ⌀12 mm (max)
SMA male

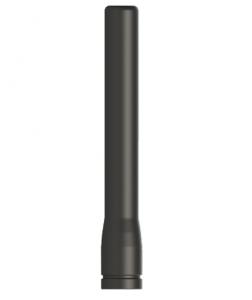

MEA-2400-SMABluetooth/ISM/Wifi : 2.4 ~ 2.5 GHz80 x ⌀9.7 mm (min)
80 x ⌀11.7 mm (max)
SMA male
MEA-2400-UWB-SMAWi-Fi/ISM/ZigBee/WLAN/Bluetooth : 2400-2483MHzΦ 48 x 82 mmSMA Male
MEA-2700-LTE LTE : 698-960 / 1710-2700 / 2500-2700 MHz22 x 66 mmN female
MEA-2700-UWB-SM4G LTE : 698-960 / 1710-2700 MHz82 x ⌀4 mmSMA Male
MEA-4-GGC
GPS / GLONASS : 1575.42 / 1602 MHz
LNA : 1575.42 / 1602 MHz
2G / 3G : 824~894 MHz / 1850~1990 MHz
58.15 x 56.2 x 16.8 mmCustom
MAXWAVE™ 4×4 MIMO TRAIN 2G/3G/4G, LTE, WiFi, WiMAX : 4 × 698 – 6000 MHz
GPS / GLONASS (option) : 1575 MHz / 1602 MHz
102.5 x 870 x 81.6 mmN female
MEA-GNSS-LTE
(Foam Adhesive)
GPS / GLONASS : 1575.42 / 1602 MHz
LTE : 698~960 / 1710~2170 / 2300~2690 MHz
11.7 x ⌀51.4 mmCustom
MEA-GNSS-LTE-MM
(Magnet Mount)
GPS / GLONASS : 1575.42 / 1602 MHz
LTE : 698~960 / 1710~2170 / 2300~2690 MHz
11.7 x ⌀51.4 mmCustom
Cobra LTE700 Active GPS : 1575.42 MHz
LTE 1/LTE 2 : 690 - 960 MHz / 1700 - 2200 MHz
166 x 200 x 88 mm-
MEA-3-GGL GPS / GLONASS : 1575-1610 MHz
LTE : 2300-2690 MHz
55 x 55 x 20 mmCustom
MEA-1700-LTELTE : 698~960 / 1710~2700 MHz20 x 215 mmN-type
MEA-UWB-01-AMLTE : 698~960 / 1710~2170 / 2300~2700 MHz105.1 x 30.1 x 6.7 mmCustom
MEA-UWB-LTE-90690-960 MHz
1710-2700 MHz
163 x 22 x 7 mmSMA Male
